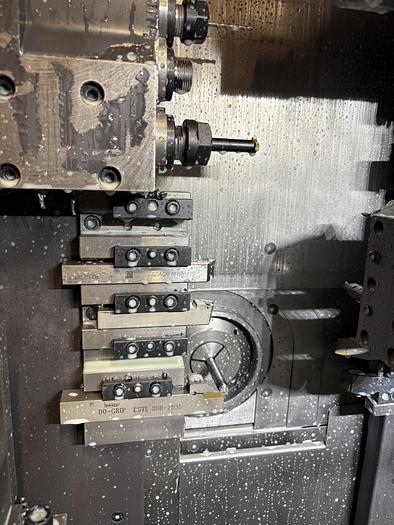

2019 Tsugami B0386E-III

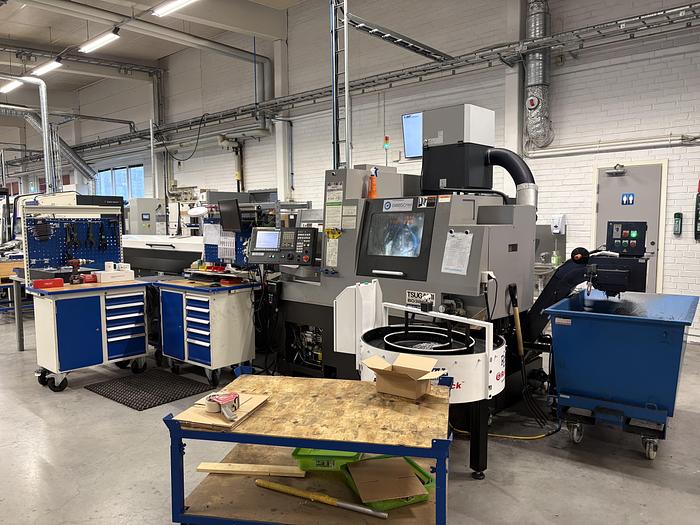

TSUGAMI B0386E-III Swiss type lathe

WORKING AREA

Bar diameter Ø mm 8 – 38

Max part length mm 320 (Direct-driven rotating guide bushing)

Max part length mm 70 (Without guide bushing)

Max drilling diameter Ø mm 13

Max thread diameter M 12

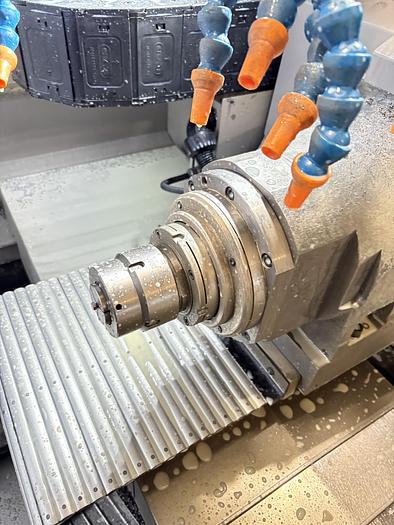

Max chuck diameter for sub spindle Ø mm 38

Max drilling diameter for sub spindle Ø mm 12

Max thread diameter for sub spindle M 12

Max drilling diameter for driven tools Ø mm 10

Max thread diameter for driven tools M 8

Max diameter T-slot cutter (driven tool) Ø mm 45

CAPACITY

Max spindle speed main spindle rpm 6000

Max spindle speed sub spindle rpm 7000

Max spindle speed rotating guide bushing rpm 6000

Max spindle speed tool spindle rpm 5000

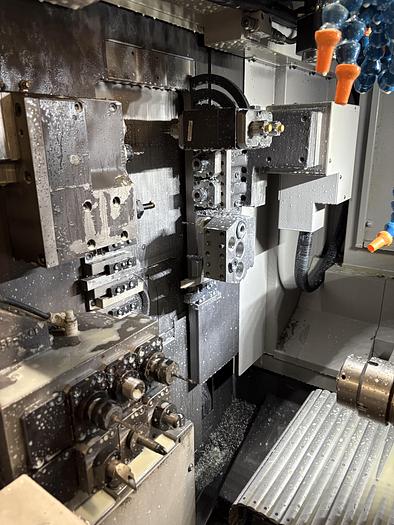

Number of tool positions pcs 29

Tool size mm 16x16x125, 20x20x125

Rapid traverse speed m/min 32 (Z2, X2) 24 (X1, Y1, Z1, Y2)

MOTORS

Main spindle kW 11 / 7.5

Sub spindle kW 5.5 / 3.7

Driven tools kW 1.4 (1.0 for cross-drilling units front tool post)

Y2 kW 0.5

X1, Y1, Z1, X2, Z2 kW 0.75

Coolant pump kW 0.4

Lubricating oil pump W 3

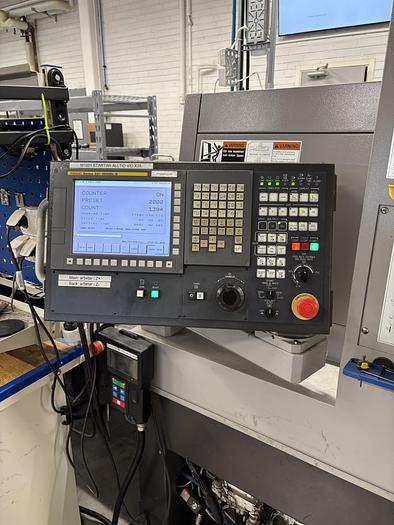

CONTROL SYSTEM

FANUC 32i-B

Controlled axes (including C-axes) pcs 8 X1, Z1, Y1, X2, Z2, Y2, C1, C2

LCD / MDI 10.4” color LCD

OTHER

Coolant tank L 190

Length x width x height mm 2240 x 1515 x 2050

Net weight kg 4950

Power requirement KVA 22.5

EQUIPMENT:

Fanuc 32i-B control system with 8 controlled axes (X1, Z1, Y1, X2, Z2, Y2, C1, C2)

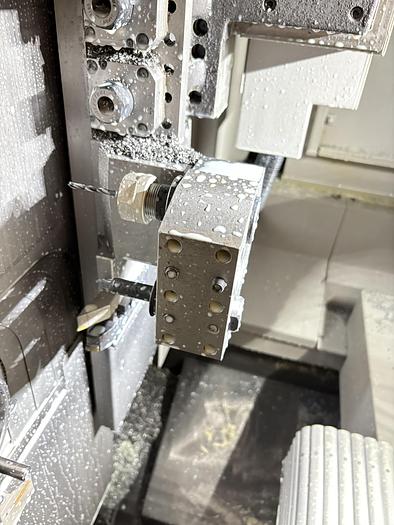

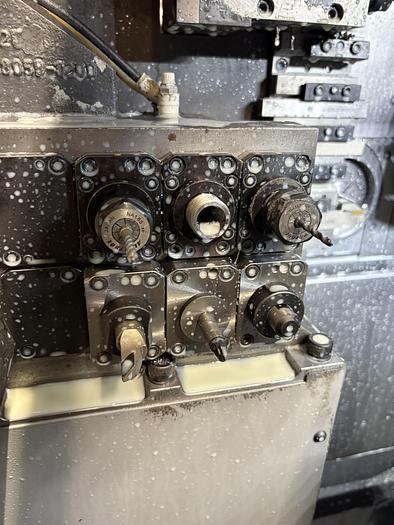

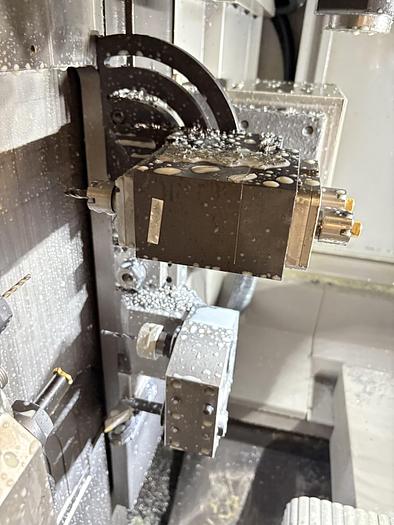

Cross drilling unit with 4 spindles

C-axis for main spindle and sub spindle

Automatic programming software Abile

Tool height compensation function

Tool counter

Screen for periodic maintenance

Door lock

Coolant level detector

Spindle cooler

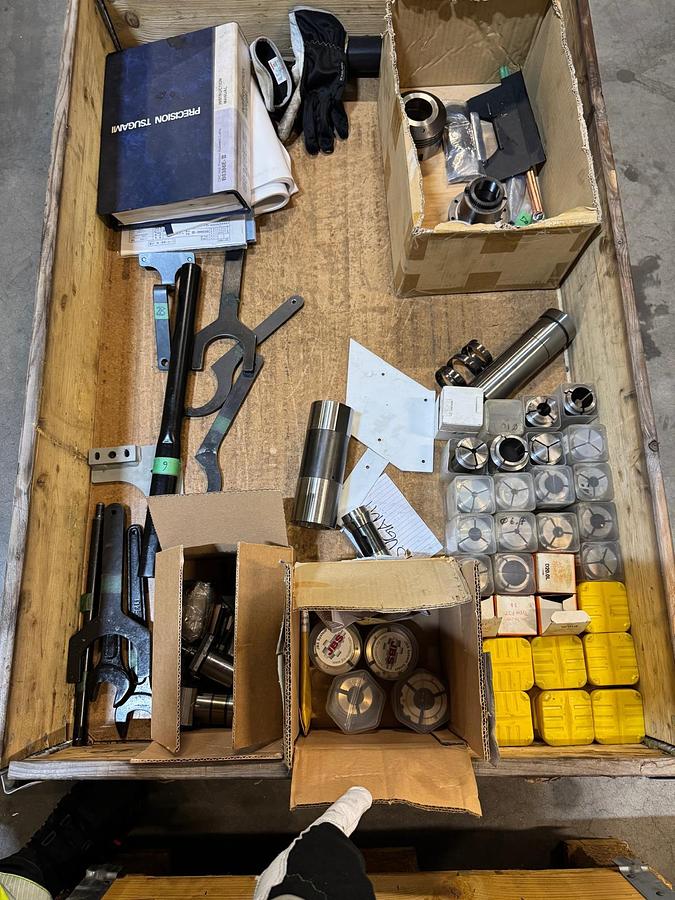

Standard tools

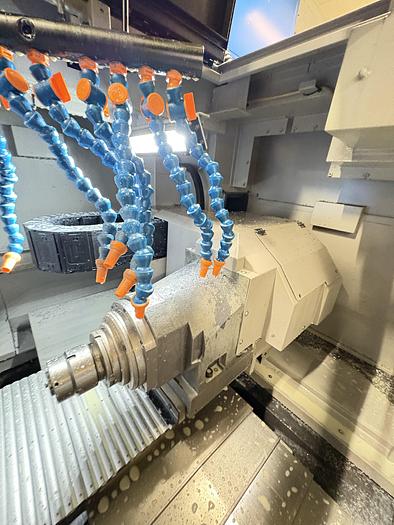

Retractable coolant nozzle

Brake for the main spindle

MACHINE PRICE: TSUGAMI B0386E-III (8 controlled axes)

OPTIONS INCLUDED IN THE MACHINE PRICE:

Tool set gauge O.D. Included

Signal tower 3-step Included

Work lighting LED Included

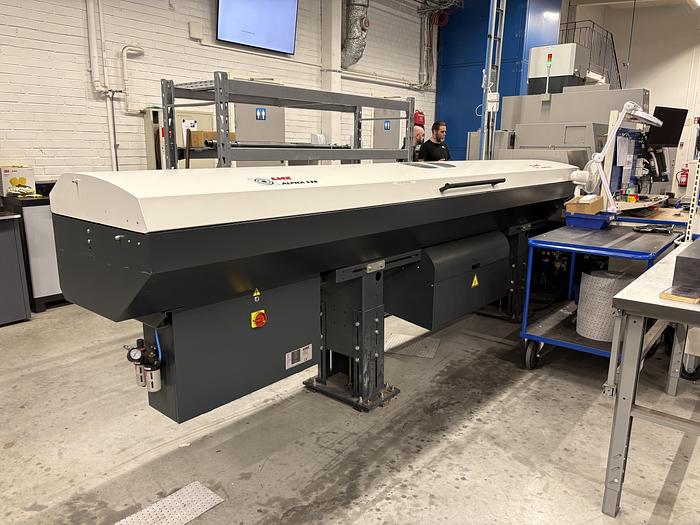

Bar interface Included

High-pressure pump (1.5 kW, 20 bar, 18 l/min) Included

Rear drive unit (rear drive, 1.4 kW) Included

Brake for sub spindle Included

Direct-driven rotating guide bushing (Tsugami 2621-1234) Included

Adapted for water-based cutting fluid (water type coolant specification) Included

Oil blowing with M code (X-axis front 1, X-axis rear, Z2) Included

Adapter for main spindle (Shaublin F37) and sub spindle (Shaublin F37)

Automatic power off Included

Air blowing for main spindle, sub spindle, and cross drilling unit

2 years Fanuc warranty (from shipment)

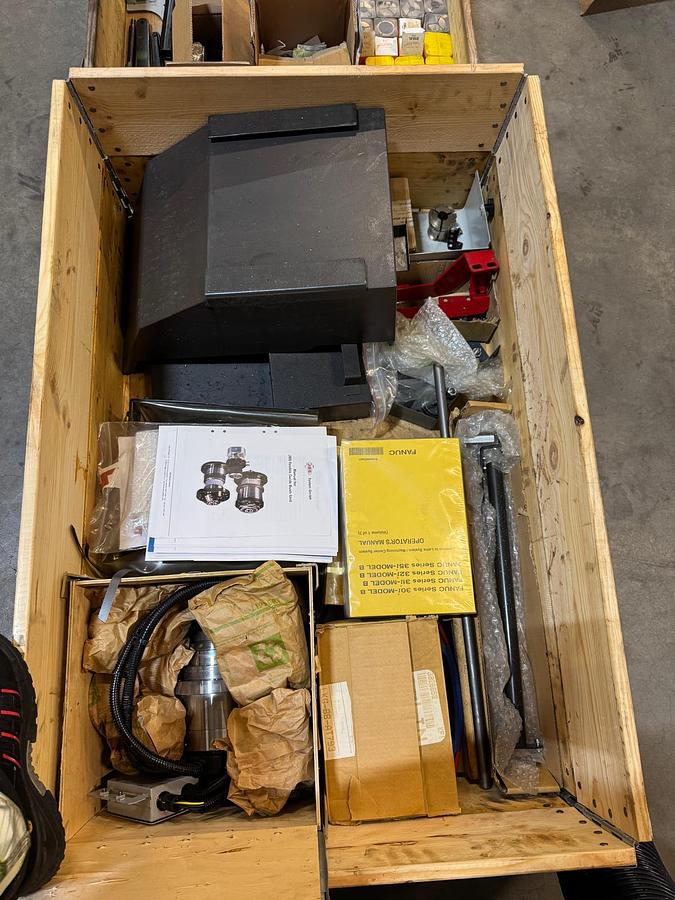

Transformer, Operator manual, Compliance with European requirements including CE marking

Drill set gauge I.D. (Long, Middle, Short)

Detail ejector front with oil blowing (stroke 147, max work length 106 mm)

Part conveyor with part separator (chute width 135, belt width 90)

Rigid tapping also for rotating tools (cross drill, rear drive, back drive)

3 tool spindles for rear drive ER16, max 5000 rpm (tool spindle for rear drive)

4 tool spindles for back tool post (3282-Y041)

4 back adapters (dia 25 fixed tool)

Guide bush adapter (Dunner CJ9)

Guide-bushless kit incl stopper

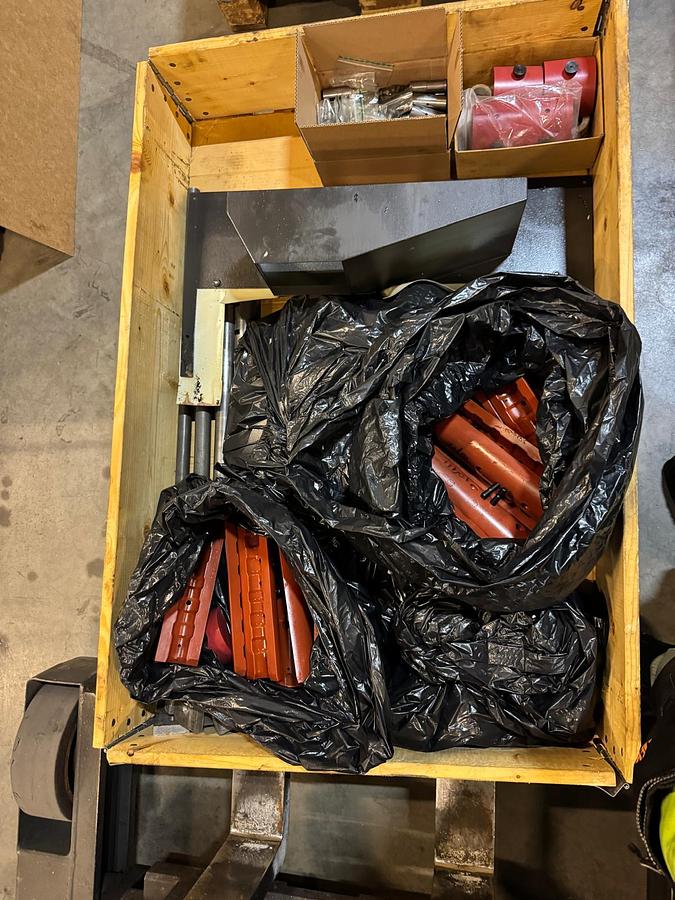

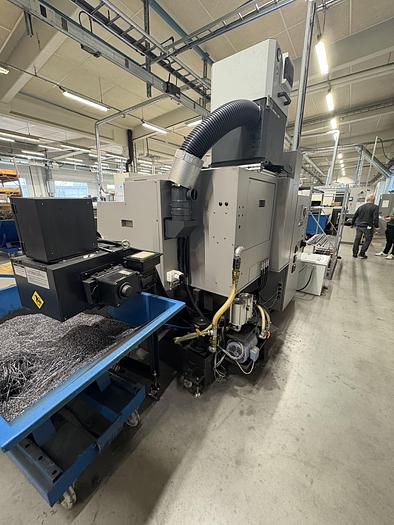

Chip conveyor (flat type)

10.4” color screen Included

Minimum input increment (0.0005mm for X1 & X2, 0.001 mm for other axes) Included

Linear interpolation Included

Circular interpolation Included

G04 Dwell (delay) 0-99999.99 Included

Absolute/Incremental programming (X, Z, Y, C absolute / U, W, V and H incremental) Included

Number of tool offsets: 99 Included

Program memory: 64 kB (80 m perforation tape) Included

Number of registerable programs: 63 Included

Chasing function Included

Continuous thread cutting Included

Manual pulse generator (MPG) Included

Memory card I/O interface Included

Background editing Included

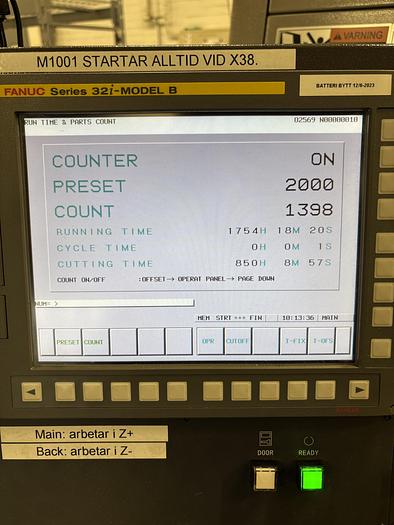

Cycle time indicator / part counter Included

Customer macro Included

Constant surface speed control Included

Synchronization control (rotation/phasing) Included

Tool geometry / wear compensation Included

Programmable data input Included

Chamfering and corner radius Included

Tool nose radius compensation Included

HRV control Included

Multi-repeatable cycles Included

Extended program editing Included

Drilling cycles Included

Rigid tapping for main spindle, back spindle Included

Fluctuation detection of spindle speed Included

Stored stroke length check 2, 3 (stored stroke check) Included

Imperial/metric conversion Included

Program memory expanded to 512 kB (from standard 64 kB) Included

Spiral interpolation Included

Manual handle retrace function Included

Three-dimensional coordinate conversion Included

Direct drawing dimension programming Included

Variable lead thread cutting Included

Cylindrical interpolation Included

Polar coordinate interpolation Included

Abnormal load detection (X1) Included

Remodel A Auto mode start select (Main / back simultaneous) Included

Torque limit skip function (X1, Y1, Z1, X2, Y2, Z2) Included

Rapid feed override function (normal feed rate switch specification) Included
